All types and classes of our lightning and surge arresters 20KA~200KA(8/20μS) and 15KA~50KA(10/350μS) are tested and pass all the requirements based on their class.

Signal Surge Protection

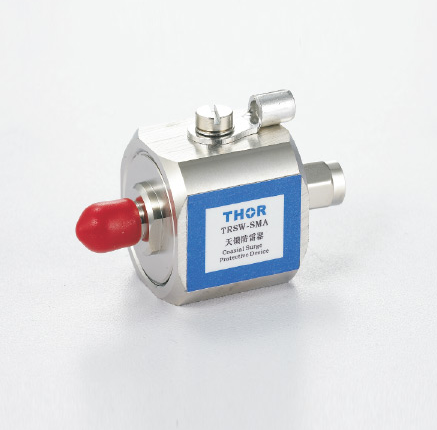

  • TRSW-SMA Coaxial Surge Arrester

    TRSW-SMA Coaxial Surge Arrester

    TRSW-SMA coaxial antenna-fed lightning protection device (SPD, surge protector) can prevent damage to the antenna and transceiver equipment caused by the feeder induced lightning overvoltage. It is suitable for satellite wireless communications, mobile base stations, microwave communications, broadcast television, etc. The surge protection of the coaxial antenna feeder system signal is installed in the lightning protection zone LPZ 0 A-1 and subsequent zones. The product is packaged in a shielded shell and has a built-in high-quality high-speed overvoltage protection device, which has an efficient protection and defense function for the lightning high-voltage pulse induced on the antenna feeder line.
  • TRSC Lightning Counter

    TRSC Lightning Counter

    The lightning counter is suitable for counting the number of lightning discharge currents of various lightning protection devices. The counting times are two digits, which expands the function that only counted in units in the past, up to 99 times. The lightning counter is installed on the lightning protection module that needs to discharge lightning current, such as the ground wire of the lightning protection device. The initial counting current is 1 Ka, and the maximum counting current is 150 kA. Power failure in the lightning counter can protect data for up to 1 month. The lightning counter is equipped with a current transformer.
  • TRSS-RJ45/8 Network Signal Surge Protector

    TRSS-RJ45/8 Network Signal Surge Protector

    TRSS-RJ45/8 belongs to the Gigabit POE network lightning protection device (1000M POE network lightning protection device, Gigabit Ethernet power supply lightning protection device), which is designed and manufactured according to IEC and GB standards, and meets the requirements of IEEE802.3AT, using high quality , Surge protection devices with high discharge capacity, ultra-low junction capacitance and ultra-fast recovery diode matrix structure, network filters, etc. provide high-energy coarse-level protection and low-energy fine protection for data lines, suitable for simultaneous transmission of power using six types of network cables , Network signal server, wireless AP, network camera, network switch and other communication equipment surge protection, integrated design, easy to install.

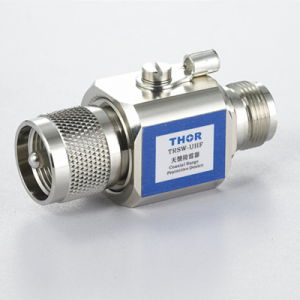

  • TRSW-UHF Coaixal Surge Arrester

    TRSW-UHF Coaixal Surge Arrester

    TRSW-UHF coaxial antenna-fed lightning protection device (SPD, surge protector) can prevent damage to the antenna and transceiver equipment caused by the feeder induced lightning overvoltage. It is suitable for satellite wireless communications, mobile base stations, microwave communications, broadcast television, etc. The surge protection of the coaxial antenna feeder system signal is installed in the lightning protection zone LPZ 0 A-1 and subsequent zones. The product is packaged in a shielded shell and has a built-in high-quality high-speed overvoltage protection device, which has an efficient protection and defense function for the lightning high-voltage pulse induced on the antenna feeder line.
  • TRSS-BNC+1 Multi-function Signal Surge Protector

    TRSS-BNC+1 Multi-function Signal Surge Protector

    TRSS-BNC+1 Coaxial high-definition video lightning protection device (SPD, surge protector) can prevent damage to equipment caused by feeder-induced lightning overvoltage, power interference, and electrostatic discharge. It is suitable for video surveillance, satellite wireless communications, mobile base stations, and microwave communications. The surge protection of coaxial feeder system equipment such as radio and television is installed in the lightning protection zone LPZ 0 A-1 and subsequent zones. The product is packaged with a shielded shell and built-in high-quality high-speed over-voltage protection devices, which have high-efficiency protection and protection functions against lightning high-voltage pulse over-voltage on the line.
  • TRSS-RJ11 Telephone Signal Surge Protector

    TRSS-RJ11 Telephone Signal Surge Protector

    TRSS-RJ11 telephone lightning protection device is designed in accordance with IEC and international standards. It is mainly used for lightning protection and overvoltage protection of telecommunications data communication signal lines and their equipment (such as telephones, program-controlled switches, fax machines, ADSL, MODEN). It is easy to install and requires no special maintenance.
  • TRSS-BNC Signal Surge Protector

    TRSS-BNC Signal Surge Protector

    TRSS-BNC video signal lightning protection device is mainly used for surge protection of cable television transmission system and CCTV video monitoring system equipment (such as hard disk video recorder, matrix, optical transceiver, camera) of coaxial cable transmission line. It can prevent the above types of system equipment from being struck by lightning or industrial noise caused by induced over-voltage, over-current phenomena and other instantaneous surge voltages to cause permanent damage or instantaneous interruption to the system or equipment.
  • TRSS-DB9 Serial Port Signal Surge Arrester Protector

    TRSS-DB9 Serial Port Signal Surge Arrester Protector

    TRSS-DB9 serial data signal lightning protection device (SPD, surge protector) DB series surge protector is designed according to IEC and GB standards. It is mainly used in wired remote sensing, telemetry, remote control, etc. to provide line-to-line equipment with D-type serial port , Surge protection between line and ground, applied to lightning protection zone 1-2 and 2-3 zone, easy to install, no maintenance.
  • TRSS-RJ45-24 Rack-mounted Network Signal Surge Protector

    TRSS-RJ45-24 Rack-mounted Network Signal Surge Protector

    TRSS-RJ45-24 1000MPOE network lightning protection device (Gigabit POE lightning protection device, Ethernet power supply lightning protection device), designed and manufactured according to IEC and GB standards, while meeting the requirements of IEEE802.3AT, using high quality, high discharge capacity Surge protection devices, ultra-low junction capacitance, ultra-fast recovery diode matrix structure, network filters, etc. provide high-energy coarse-level protection and low-energy fine protection for data lines. It is suitable for servers that use six types of network cables to transmit power and network signals at the same time. , Wireless AP, network camera, network switch and other communication equipment surge protection, integrated integrated design, easy to install.
  • TRSS-RJ45/4 Network Signal Surge Protector

    TRSS-RJ45/4 Network Signal Surge Protector

    TRSS-RJ45 series network lightning protection device mainly includes 100M network lightning protection device, Gigabit network lightning protection device, single-port network lightning protection device, 16-port network lightning protection device, 24-port network lightning protection device, network switch lightning protection device, Signal surge protector, and other network lightning protection products. The 10/100 network signal surge protector is designed according to the IEC communication network lightning protector standard, and is suitable for 10BASE T or 10/100M adaptive Ethernet surge protection. Standard RJ45 interface, protection circuit has 4-core line protection (1,2,3,6), 8-core line full protection (12, 36, 45, 78), plug and play.
  • TRSS-485 Control Signal Surge Protector

    TRSS-485 Control Signal Surge Protector

    The TRSS control signal lightning protector is used to protect sensitive high-speed communication network lines from damage caused by lightning induced voltage, power interference, electrostatic discharge, etc. The signal lightning protection device adopts multi-level protection circuit, selects world-famous components, and is manufactured by advanced production technology. It has the characteristics of large current capacity, low residual voltage level, sensitive response, stable performance, and reliable operation.

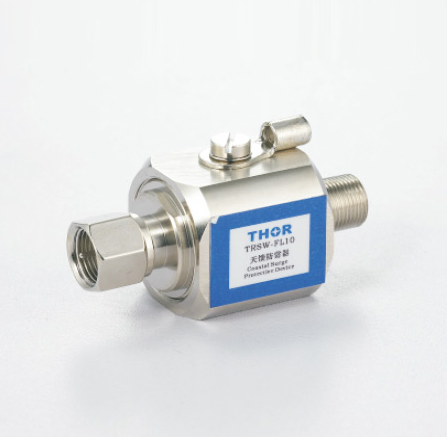

  • TRSW-FL10 Coaxial Surge Arrester

    TRSW-FL10 Coaxial Surge Arrester

    TRSW-FL10 coaxial antenna-fed lightning protection device (SPD, surge protector) can prevent damage to the antenna and transceiver equipment caused by the feeder induced lightning overvoltage. It is suitable for satellite wireless communications, mobile base stations, microwave communications, broadcast television, etc. The surge protection of the coaxial antenna feeder system signal is installed in the lightning protection zone LPZ 0 A-1 and subsequent zones. The product is packaged in a shielded shell and has a built-in high-quality high-speed overvoltage protection device, which has an efficient protection and defense function for the lightning high-voltage pulse induced on the antenna feeder line.
